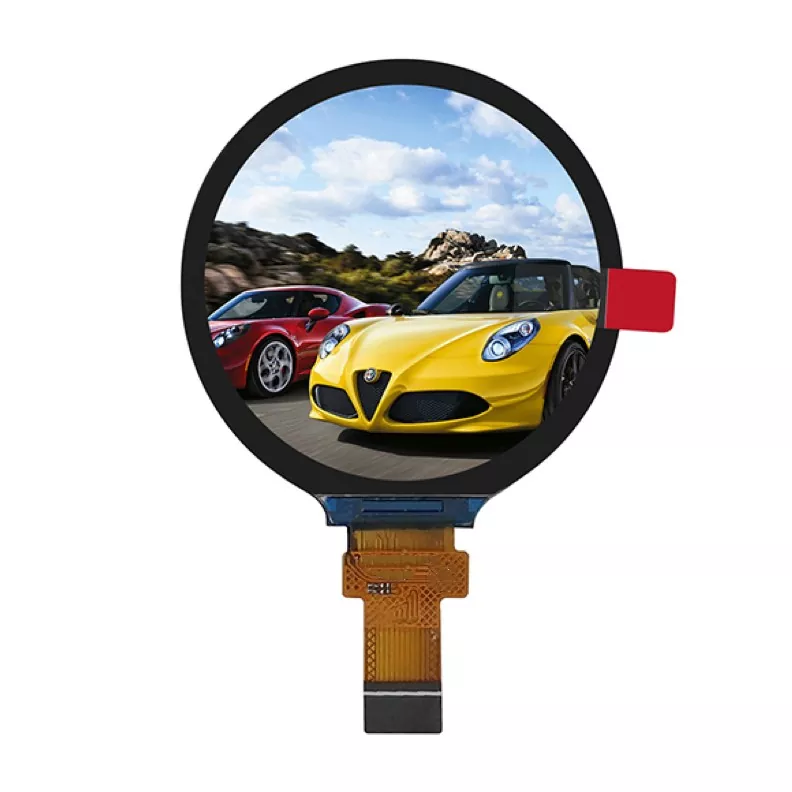

1,6 tolli 400x400 ümmarguse IPS TFT moodul

VXT016VCSA-01 on üks Hiina tehase Victronixi ümmarguse IPS TFT mooduli. Professionaalse tootjana tahaksime teile pakkuda kvaliteetset 1,6 -tollist 400x400 ümmargust IPS TFT moodulit.

Mudel:VXT016VCSA-01

Saada päring PDF allalaadimine

Tootekirjeldus

This VXT016VCSA-01 applies to 1.6 inch 400x400 Round IPS TFT Module,350nits brightness, QSPI interface,is designed for toy, digital camera application, industrial equipment device and other electronic products which require high quality flat panel displays, excellent visual effect.

General Specifications

VXT016VCSA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit . The 1.6¢¢ display area contains 400x400 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

LCD Parameter

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃

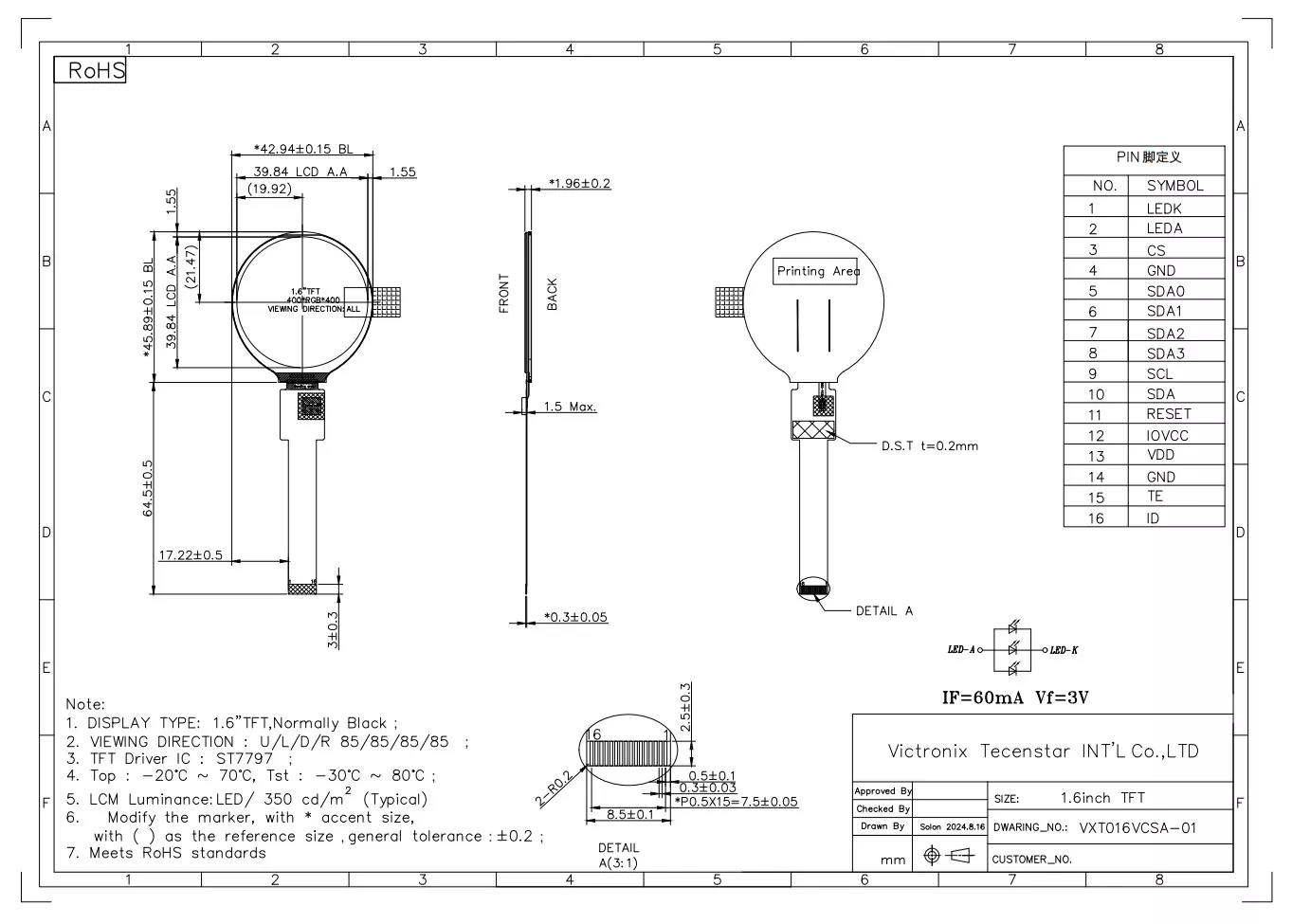

Module size	Refer to outline drawing	mm
Active Area(W×H)	39.84*39.84	mm
Number of Dots	400X400	dots
Driver IC	ST77903	-
Power Supply Voltage	3.3	V
Outline Dimensions	Refer to outline drawing	-
Backlight	1S3P-LEDs (white)	pcs
Interface	QSPI	-
